Overview
Description

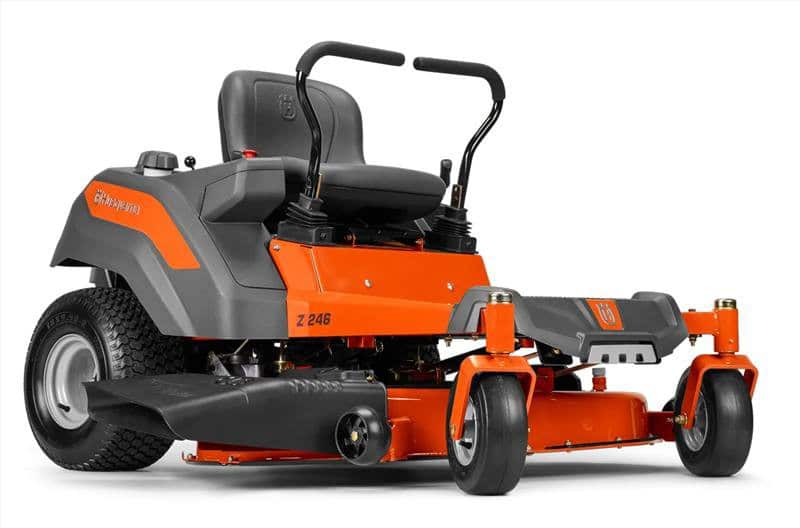

Performance and style hit the grass running with the Z200 Series zero-turn mowers.
Equipped with a powerful Endurance V-Twin engine, the Z246 is engineered for homeowners
ready to take their lawn care to the next level. With excellent ground speed and cutting
efficiency, it delivers reliable results every time.
Key Features
- Maintenance-Free Transmission
Hydraulic transmission system designed for long-lasting performance with minimal maintenance. - Endurance V-Twin Engine
Provides dependable power and performance for efficient mowing across a variety of lawn conditions. - Reinforced Steel Cutting Deck
Stamped deck with reinforced structure increases durability and extends product life. - Air Induction™ Mowing Technology
Improves airflow within the deck for a cleaner, more consistent cut. - Convenient Deck Lift
Easy-to-use manual lift system for quick cutting height adjustments. - User-Friendly Design
Ergonomic control panel, anti-slip foot area, removable foot plate, and rear engine guard enhance usability and maintenance access. - Automatic Park Brake
Brake automatically engages and disengages as steering levers are moved.
Performance
- Productivity: 2.4 acres/hr
- Forward Speed: 0 – 6.5 mph
Cutting Deck
- Cutting Width: 46 in
- Deck Type: Stamped, reinforced steel
- Cutting Height: 1.5 – 4 in
- Cutting Height Steps: 6
- Cutting Methods: Collect, mulch, side discharge
- Blade Engagement: Electric clutch
- Clutch Rating: 105 ft-lb
- Blades: 2
- Blade Tip Speed: 16,600 fpm
- Anti-Scalp Wheels: 3
- Deck Lift: Manual (hand operated)
- Deck Thickness: 13 gauge
- Spindle Type: Aluminum, vented
- Greasable Mandrels: Yes
- Deck Wash Port: Yes
- Powder-Coated Deck: Yes
Dimensions
- Weight: 504 lb
- Length: 75 in
- Height: 40 in
- Width (Chute Down): 56.5 in
- Width (Chute Up): 48 in
Drive System
- Transmission Type: Hydrostatic
- Transmission Manufacturer: Hydro-Gear
- Pump Displacement: 10 cm³
- Fan-Cooled Pumps: Yes
Engine
- Manufacturer: Briggs & Stratton
- Engine: Endurance Series V-Twin
- Power Output: 20 hp
- Displacement: 49.43 cu in
- Cylinders: 2
- Cooling: Air
- Fuel Type: Gasoline
- Fuel Tank Capacity: 3.5 gal
- Fuel Tank Location: Side (single)
- Lubrication: Full pressure with oil filter
- Oil Filter: Yes
- Air Filter: Auto-type paper
Equipment
- Seat: 15″ high back (vinyl)
- Seat Back Height: High
- Seat Spring: Yes
- Cup Holder: Yes
- Armrests: Optional (hinged)
- Hour Meter: Digital with service intervals
