Overview
Description
A Redesigned Legend: A 60cc powerhouse for professional forestry and tree care.

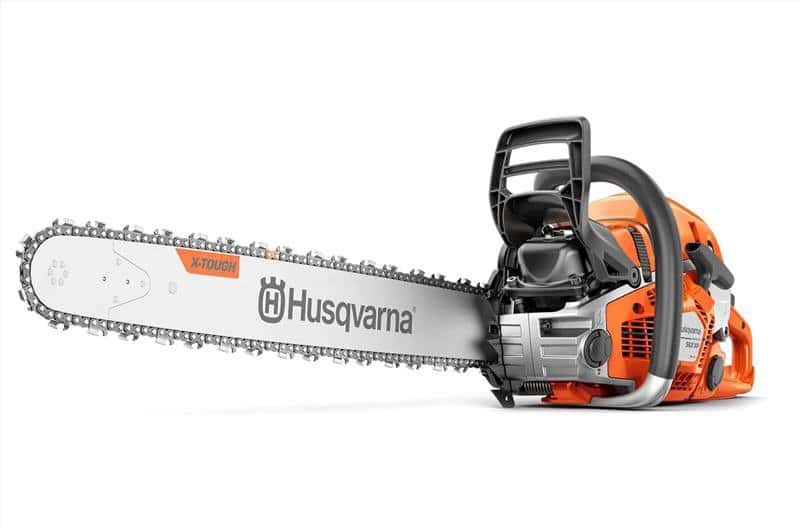

Engineered for the demands of professional forestry and tree care, the Husqvarna 562 XP® Mark II offers unparalleled handling in even the most demanding environments.
Featuring a new and improved engine design and AutoTune™ 3.0 technology for simpler starting, this chainsaw delivers the power of a large saw in a slim, agile body.
The 562 XP® Mark II accommodates guide bars of up to 28 inches and has been meticulously redesigned to offer more durability, improved cutting capacity, reduced weight, and enhanced cooling – resulting in a powerhouse that is easy to handle and tough to beat.
Features
- High Cutting Capacity: New engine design offers peak performance even during longer cuts.
- Ability to Carry Longer Bars: Large bar mount, sturdy crankcase, and sufficient chain oiling support longer bars.
- Slimmed-Down Design: Low, slender saw body for easy handling in all situations.
- Always Optimized: AutoTune 3.0 keeps engine settings optimized in all conditions without manual adjustments.
- Powerful and Efficient X-TORQ® Engine: Reduces harmful exhaust emissions by up to 60% and increases fuel efficiency by up to 20%.
- Optimized Saw Body: Smooth underside, rounded starter cover, and well-protected controls for safe handling.
- Air Injection: Filters 98% of incoming dust to reduce air filter cleaning and maintain performance.
- Felling Sight: Permanently molded for long-lasting accuracy.
- Magnetic Filter: Protects engine by preventing metal particles from reaching the carburetor.
- Retained Bar Nuts and Starter Screws: Prevent accidental loss.
- Low Vibrations: Anti-vibration system reduces hand and arm fatigue for increased productivity.
- Quick Chain Adjustment: Side-mounted chain tensioner allows fast and easy adjustments.
- Flip-Up Fuel Cap: Easy to open even with gloves.
Engine
- Chain Speed at Max Power: 70.2 fts (21.4 m/s)
- Cylinder Displacement: 59.8 cm³
- Output Shaft Power: 4.7 hp (3.5 kW)
- Max Torque: 3.44 Nm at 7,800 rpm
- Clutch Engagement Speed: 4,100 rpm
- Idling Speed: 2,800 rpm
- Maximum Power Speed: 9,600 rpm
- Oil Pump: Adjustable Flow
- Spark Plug: NGK CMR6H
Equipment
- Recommended Bar Length: 15–28 in (38–70 cm)
- Chain Type: C83
- Bar Length: 20 in (50 cm)
- Pitch: 3/8″
- Sprocket Type: Rim 7
- Gauge: .050″
Dimensions & Weight
- Weight (excl. cutting equipment): 13 lb (5.9 kg)
Sound & Vibration
- Sound Pressure Level at Operator’s Ear: 107 dB(A)
- Sound Power Level, Guaranteed: 118 dB(A)
- Sound Power Level, Measured: 116 dB(A)
- Vibration Rear Handle: 4.5 m/s²
- Vibration Front Handle: 4 m/s²
Lubricant & Emission
- Oil Tank Volume: 0.7 US pint
- Lubricant Type: Husqvarna 2-stroke or equivalent (50:1)
- Exhaust Emissions (CO2 EU V): 778 g/kWh
