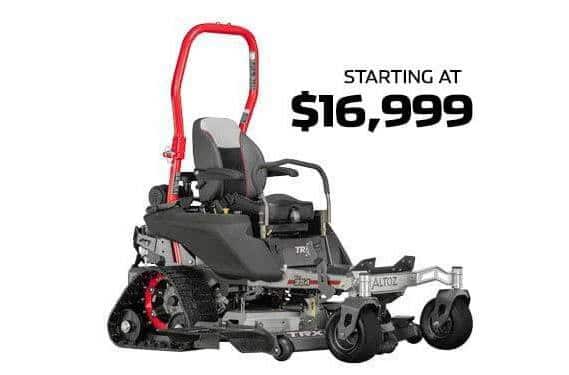

2024 Altoz TRX 354 FINISH CUT 24 KAWASAKI® FT

Description

When You Need ROI ASAP

Let’s get down to business. You do not invest in equipment for your business unless it delivers a positive return.
That is why faster ROI is built into the DNA of a TRX mower. With the TRX, you can reduce man-hours, bid more
profitable jobs, and win more business. It was designed for operators who know only the best will do.

Features

The Low Down on Ground Pressure

Low ground pressure and high traction are critical for getting more jobs done with less damage. Reduced ground
pressure helps limit spinning, rutting, and damage to underground structures, especially on soft ground. The TRX
track system provides excellent traction and better control, particularly on slopes.

Durability

Heavy-duty fork casters with 1-1/4 inch tapered roller bearings are built for maximum performance and durability in
demanding conditions. C-channel frame rails, combined with formed, laser-cut, and welded heavy-gauge steel, deliver
outstanding strength and rigidity.

Aero Deck™

The Aero Deck™ high-output cutting system delivers the precision cut you count on. It features recessed anti-scalp
wheels and fully adjustable baffles for a professional-grade finish every time.

HV All-Terrain Deck

The HV All-Terrain Deck is a heavy-duty, fabricated, reinforced steel deck with six swing blades that absorb impact
when contacting solid objects. Its sloped-back rear discharge design efficiently processes material.

Big Features That Deliver Big Benefits

• TRX Turf Tracks: Perfect for soft ground, rolling hills, and sensitive terrain.
• TerraFlex™ Tracks: Engineered for traction, stability, and a smooth ride in demanding conditions.
• Torsion Axle Rear Suspension: Helps the track system contour to the ground while bridging over holes for a smoother ride.
• Flat-Free Tires: Altoz flat-free tires handle tough conditions and provide the feel of a pneumatic tire without ever going flat.
• TorqFlex™ Front Suspension: Smooths out bumps, improves stability, and reduces operator fatigue.
• Hydro-Gear Transmission: Provides smooth, reliable, and responsive control.

Specifications

Engine

• Engine: Kawasaki® FT
• Horsepower: 24 hp
• Displacement: 726 cc
• Cylinders: 2
• Air Filter: Multi-stage canister
• Fuel Type: Gasoline
• Fuel Capacity: 10 gallons
• Fuel Tank: Side, double

Drive Line

• Transmission Type: Hydrostatic
• Transmission: Hydro-Gear ZT-3400
• Max Forward Speed: 8 mph
• Front Tire Size: 13 in. flat-free tires
• Rear Track Size: 11 in. x 71 in. turf track (standard)

Additional Features

• TorqFlex™ front suspension*
• 12-way adjustable suspension seat
• SmarTac™ Pro display*
• Soft start clutch engagement*
• Keyless push-to-start*
• Oil warning light*
• No-slip floor mat
• Turf tracks*
• Rear hitch installed on TRX 354 models

Dimensions & Weight

• Length: 84.5 in.
• Width (chute up): 55 in.
• Height (ROPS up): 76 in.
• Weight: 1,220 lb.

Cutting Deck

• Cutting Width: 54 in.
• Deck Construction: Fabricated steel Aero deck
• Deck Thickness: Laminated 10 and 10 gauge
• Deck Depth: 4.5 in.
• Cut Height: 2.25 in. to 5 in.
• Cutting Height Steps: 1/4 in. increments
• Number of Blades: 3
• Blade Speed: 18,500 fpm
• Anti-Scalp Wheels: 5 recessed
• Deck Lifting System: Manual
• Deck Torque: 200 ft-lb
• Clutch Manufacturer: Warner

Warranty

• Homeowner / Commercial: 3-year engine / 2-year transmission / 1-year manufacturer
• Rental: 3-year engine / 2-year transmission

Notes: *TRX 561 i models only.
